PULSE · Redesign Art Book · 60 pages
Four complete visual directions for the same rhythm survival game. Read every page of the original artbook, with its artwork, layouts, typography and captions preserved.
Exploratory concepts — unimplemented. These designs have not been applied to PULSE. They are a visual exploration for a possible future update, with no announced release date.
Scroll through all 60 pages. Zoom in and swipe or scroll sideways for detail. Each page includes its original text below the artwork.
D-CSIL / PAUL DERRINGTON, JR. / OCTOBER 2026 PULSE Redesign Art Book Four complete visual directions for the same rhythm survival game Signal Lab Afterimage Kinetic Press Quiet Matter Original game conceived, designed and developed by Paul Derrington, Jr. for D-CSIL. © 2026 D-CSIL. PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 01
THE BRIEF AND THE EVIDENCE

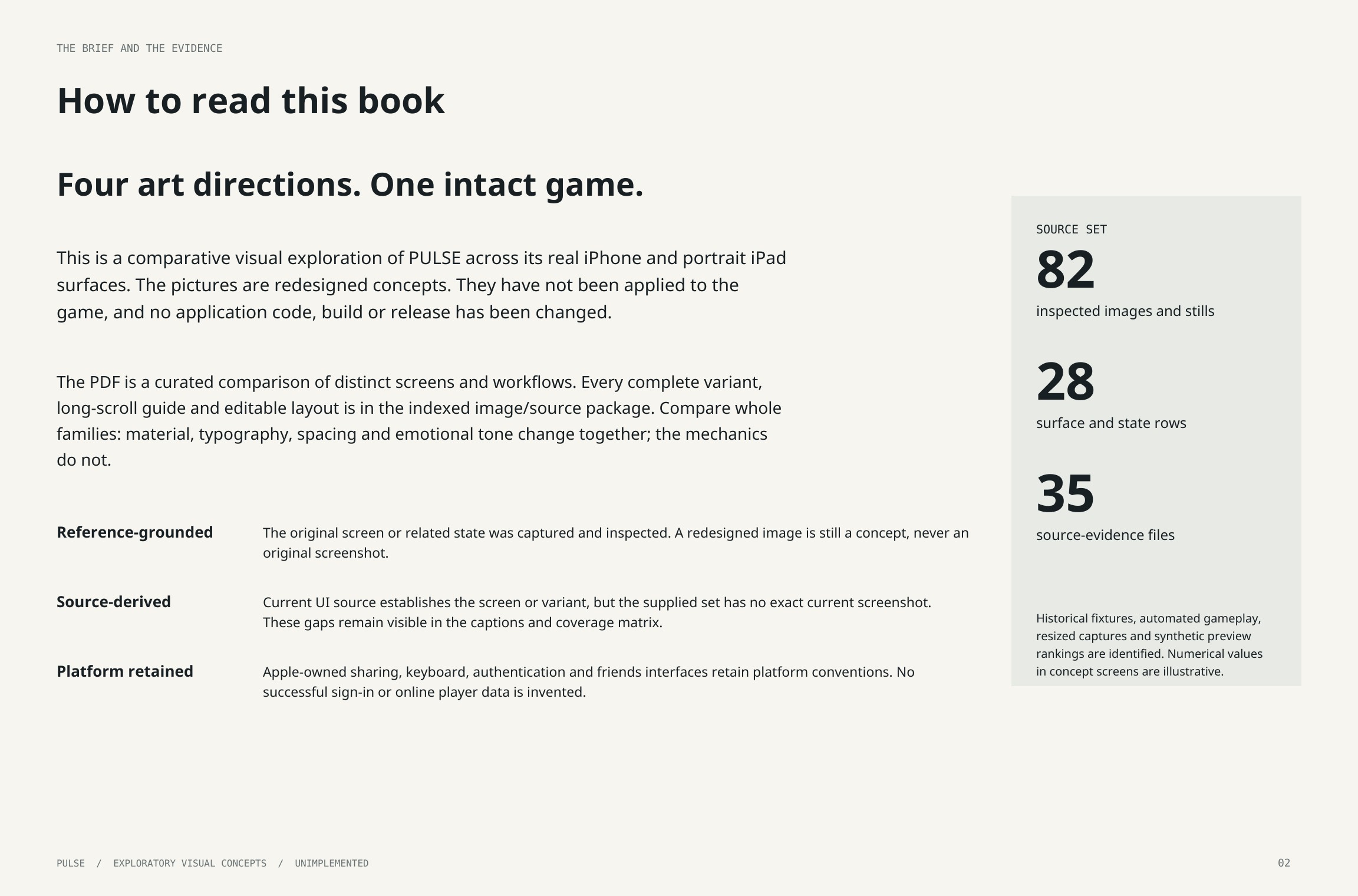

How to read this book
Four art directions. One intact game.
SOURCE SET
This is a comparative visual exploration of PULSE across its real iPhone and portrait iPad
surfaces. The pictures are redesigned concepts. They have not been applied to the 82
game, and no application code, build or release has been changed. inspected images and stills
The PDF is a curated comparison of distinct screens and workflows. Every complete variant,
long-scroll guide and editable layout is in the indexed image/source package. Compare whole
28
surface and state rows
families: material, typography, spacing and emotional tone change together; the mechanics
do not.
35
Reference-grounded The original screen or related state was captured and inspected. A redesigned image is still a concept, never an source-evidence files
original screenshot.
Source-derived Current UI source establishes the screen or variant, but the supplied set has no exact current screenshot.
These gaps remain visible in the captions and coverage matrix. Historical fixtures, automated gameplay,
resized captures and synthetic preview
rankings are identified. Numerical values
Platform retained Apple-owned sharing, keyboard, authentication and friends interfaces retain platform conventions. No in concept screens are illustrative.
successful sign-in or online player data is invented.
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 02

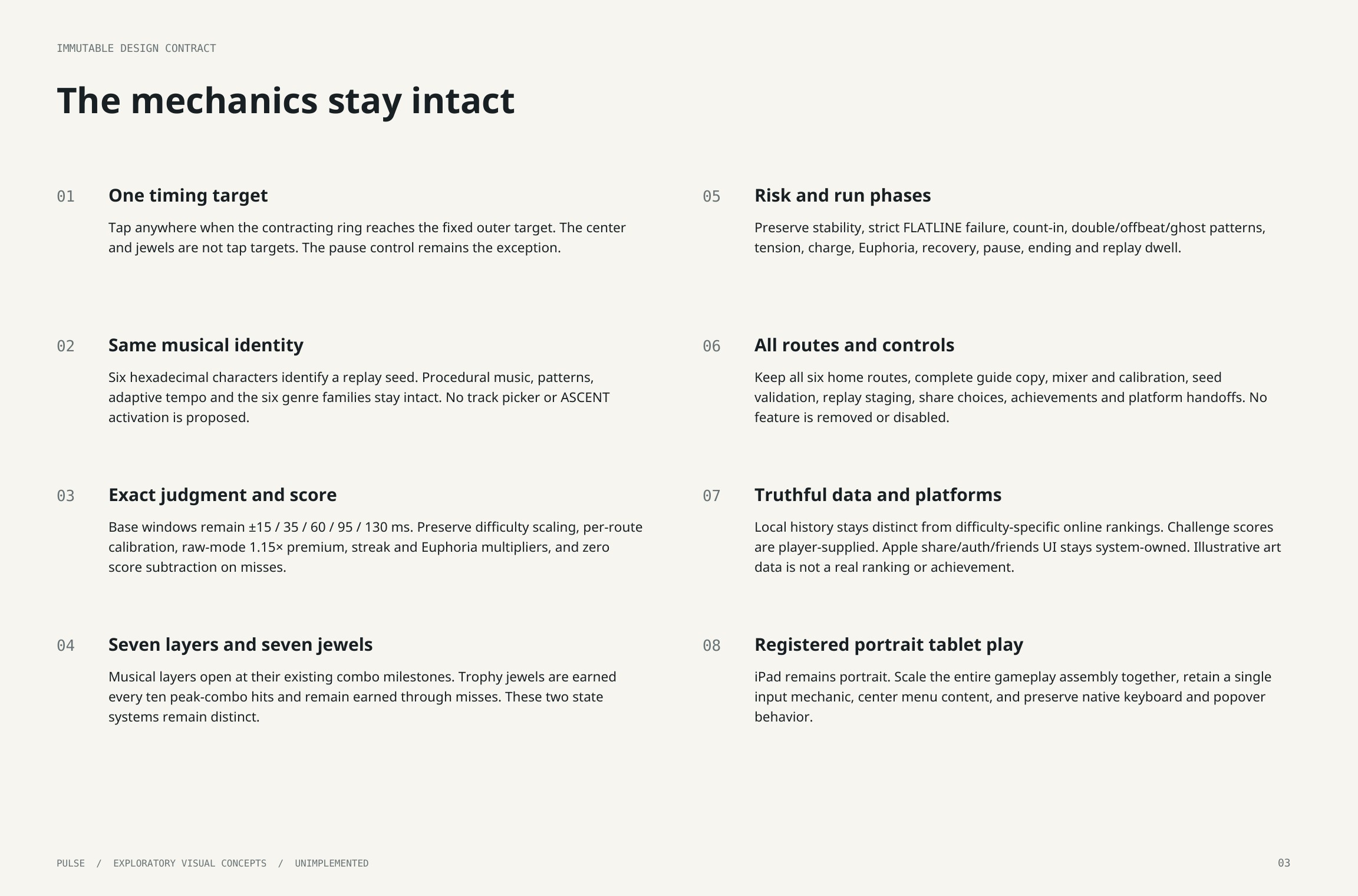

IMMUTABLE DESIGN CONTRACT
The mechanics stay intact
01 One timing target 05 Risk and run phases
Tap anywhere when the contracting ring reaches the fixed outer target. The center Preserve stability, strict FLATLINE failure, count-in, double/offbeat/ghost patterns,
and jewels are not tap targets. The pause control remains the exception. tension, charge, Euphoria, recovery, pause, ending and replay dwell.
02 Same musical identity 06 All routes and controls
Six hexadecimal characters identify a replay seed. Procedural music, patterns, Keep all six home routes, complete guide copy, mixer and calibration, seed
adaptive tempo and the six genre families stay intact. No track picker or ASCENT validation, replay staging, share choices, achievements and platform handoffs. No
activation is proposed. feature is removed or disabled.
03 Exact judgment and score 07 Truthful data and platforms
Base windows remain ±15 / 35 / 60 / 95 / 130 ms. Preserve difficulty scaling, per-route Local history stays distinct from difficulty-specific online rankings. Challenge scores
calibration, raw-mode 1.15× premium, streak and Euphoria multipliers, and zero are player-supplied. Apple share/auth/friends UI stays system-owned. Illustrative art
score subtraction on misses. data is not a real ranking or achievement.
04 Seven layers and seven jewels 08 Registered portrait tablet play
Musical layers open at their existing combo milestones. Trophy jewels are earned iPad remains portrait. Scale the entire gameplay assembly together, retain a single
every ten peak-combo hits and remain earned through misses. These two state input mechanic, center menu content, and preserve native keyboard and popover
systems remain distinct. behavior.
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 03

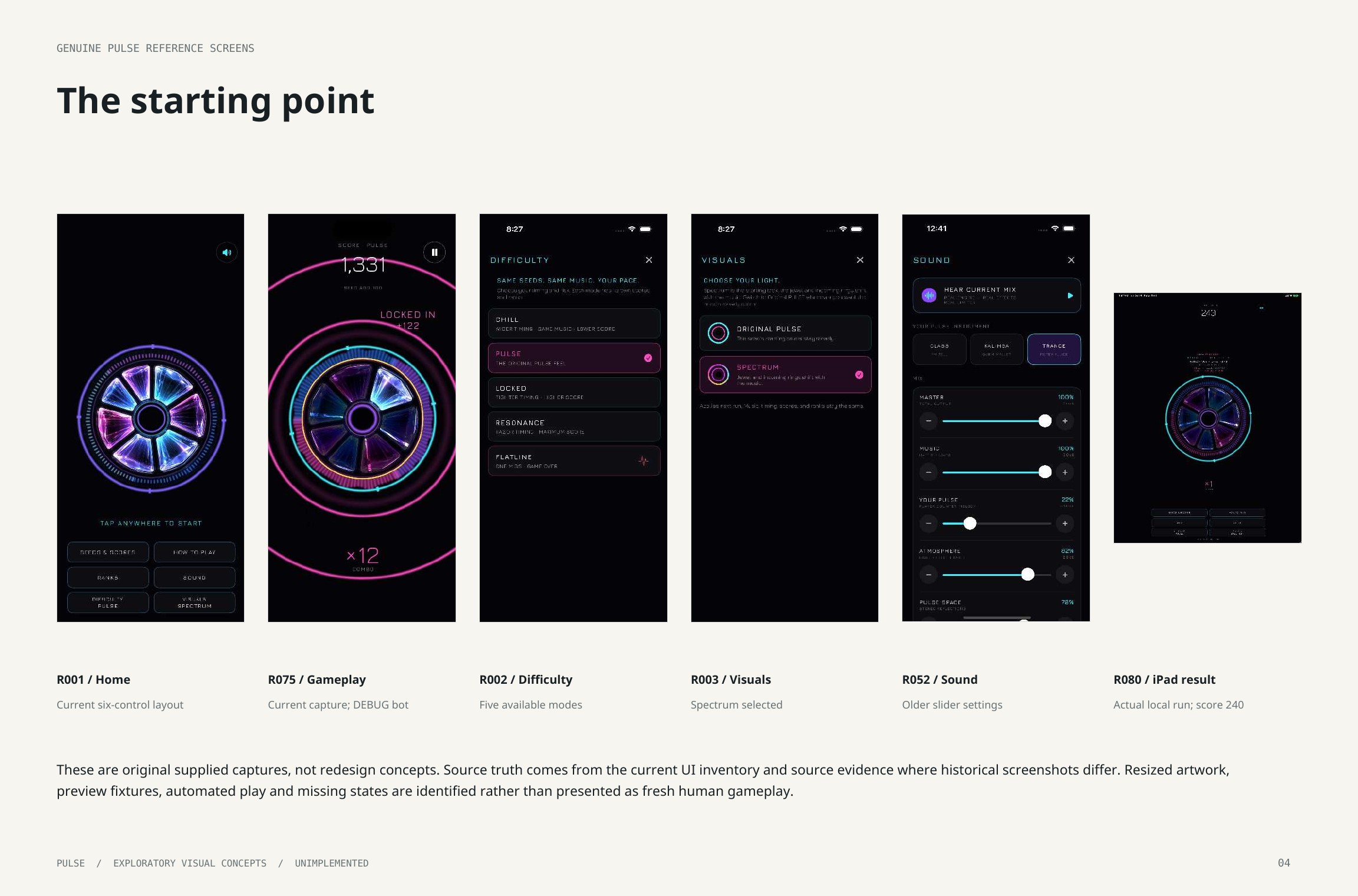

GENUINE PULSE REFERENCE SCREENS The starting point R001 / Home R075 / Gameplay R002 / Difficulty R003 / Visuals R052 / Sound R080 / iPad result Current six-control layout Current capture; DEBUG bot Five available modes Spectrum selected Older slider settings Actual local run; score 240 These are original supplied captures, not redesign concepts. Source truth comes from the current UI inventory and source evidence where historical screenshots differ. Resized artwork, preview fixtures, automated play and missing states are identified rather than presented as fresh human gameplay. PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 04

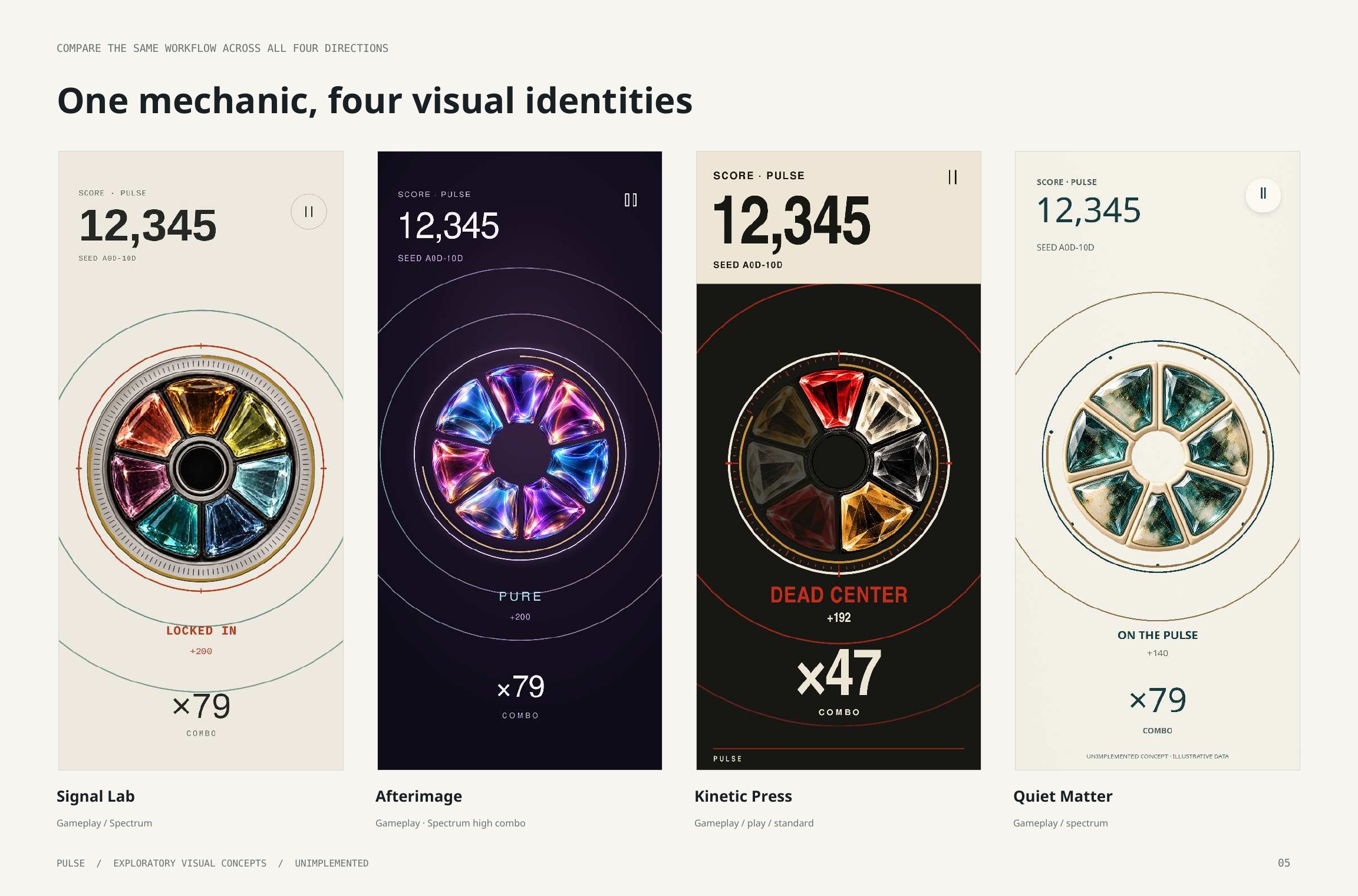

COMPARE THE SAME WORKFLOW ACROSS ALL FOUR DIRECTIONS One mechanic, four visual identities Signal Lab Afterimage Kinetic Press Quiet Matter Gameplay / Spectrum Gameplay · Spectrum high combo Gameplay / play / standard Gameplay / spectrum PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 05

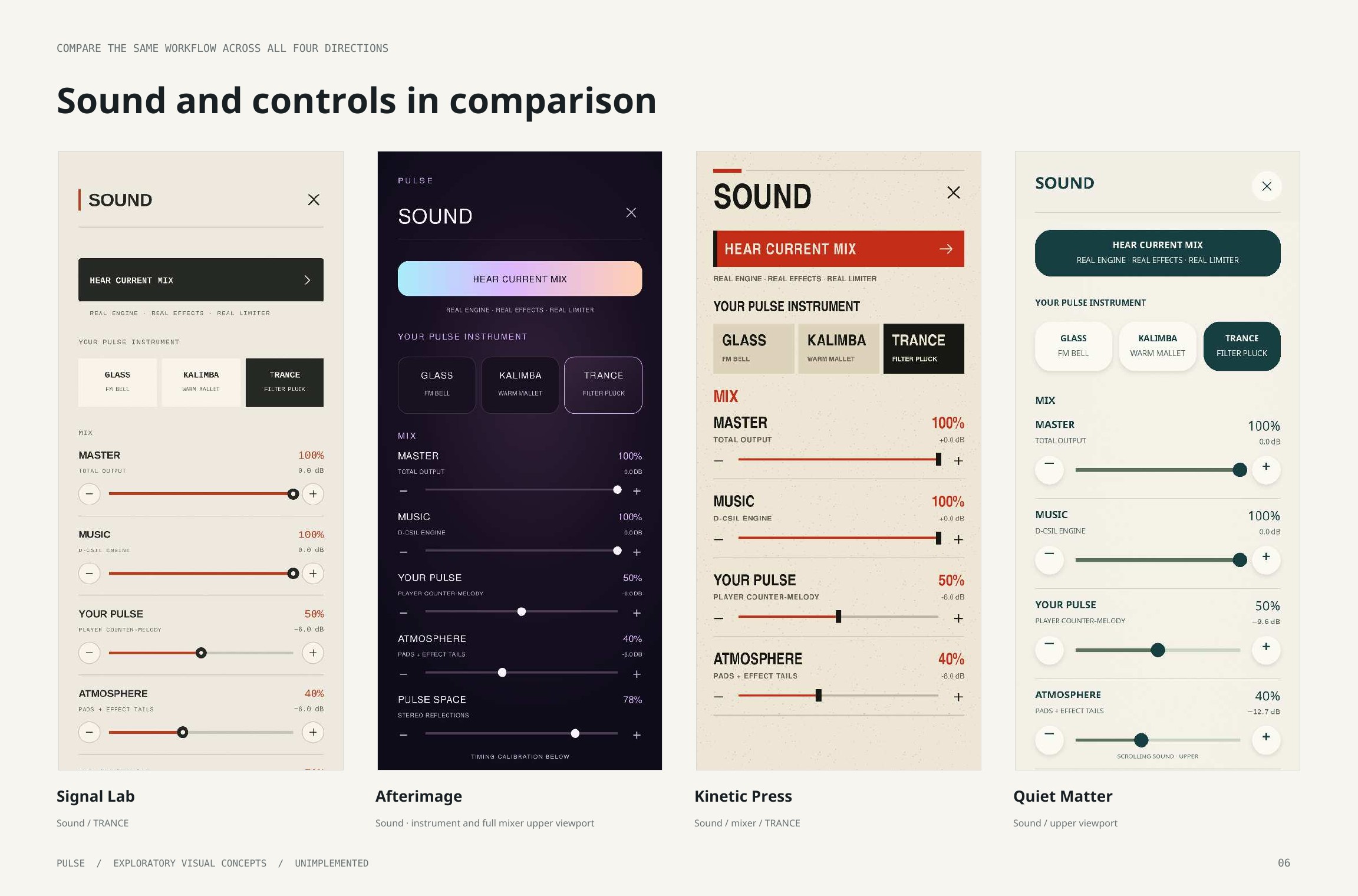

COMPARE THE SAME WORKFLOW ACROSS ALL FOUR DIRECTIONS Sound and controls in comparison Signal Lab Afterimage Kinetic Press Quiet Matter Sound / TRANCE Sound · instrument and full mixer upper viewport Sound / mixer / TRANCE Sound / upper viewport PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 06
THE PRECISION INSTRUMENT
Signal Lab
PULSE as a beautifully calibrated
electronic instrument. Machined
geometry, clear registration and warm
signal color give timing a physical
precision.
01 A disciplined control panel brings Sound, scores and timing into one visual
language.
02 Orange marks action and the true timing edge. Graphite type stays quiet
around the play field.
03 The seven-jewel reactor remains the hero, with a materially richer dial and
coherent engraved details.
VISUAL DIRECTION / COMPLETE FAMILY
All following screens are exploratory and unimplemented. Image-generated concept art is paired
with editable, precisely labeled layout studies.
MATERIAL TARGET / PRECISE EDITABLE SCREENS FOLLOW
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 07

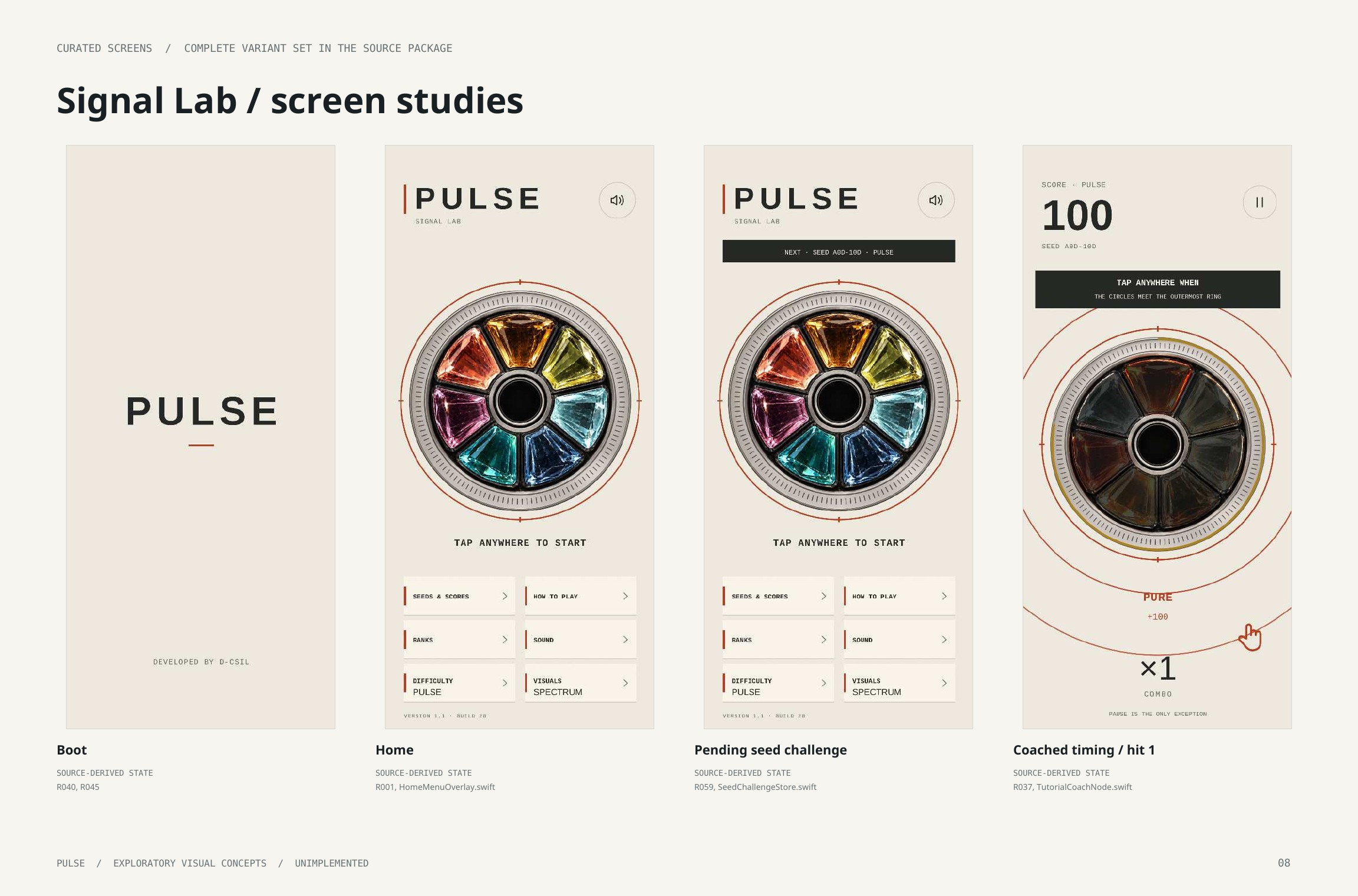

CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies Boot Home Pending seed challenge Coached timing / hit 1 SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE R040, R045 R001, HomeMenuOverlay.swift R059, SeedChallengeStore.swift R037, TutorialCoachNode.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 08
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies Self-playing demo / low Count-in / 4 Gameplay / Spectrum Drop / EUPHORIA SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE R070, GameScene.swift R071, R074 R075, R026 R031, R032, GameScene.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 09
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies Pause Results / ordinary High Scores / all High Scores / best SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE GameScene.swift R080, R044, NudgeAdvisor.swift, GameScene.swift R078, HighScoresView.swift R078, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 10
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies High Scores / empty Seed entry / invalid Seed entry / valid Share actions SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE R078, HighScoresView.swift HighScoresView.swift HighScoresView.swift R079, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 11
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies Difficulty / PULSE Visuals / SPECTRUM Sound / TRANCE Calibration / assist off SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE R002, Difficulty.swift R003, DifficultyView.swift R052, R053, AudioSettingsView.swift AudioSettingsView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 12
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies Calibration / SPEAKER / manual How to Play / THE TAP How to Play / PATTERN TWIST How to Play / REACTOR STABILITY SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE AudioSettingsView.swift, AudioSettings.swift HowToPlayView.swift HowToPlayView.swift HowToPlayView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 13
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies How to Play / THE REWARD IS THE MUSIC Ranks / local Ranks / signed-out Achievements / lower SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE HowToPlayView.swift LeaderboardView.swift, R054 LeaderboardView.swift, R054 AchievementsView.swift, GameCenterAchievementService.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 14
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / screen studies Achievements / upper Companion web challenge SOURCE-DERIVED STATE SOURCE-DERIVED STATE AchievementsView.swift, GameCenterAchievementService.swift R076, R077 PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 15
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / iPad and companion surfaces Exported score card iPad portrait / Home SOURCE-DERIVED STATE SOURCE-DERIVED STATE R069, R051, SeedChallengeShareCard.swift R013, DesignTokens.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 16
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / iPad and companion surfaces iPad portrait / Gameplay iPad portrait / Results SOURCE-DERIVED STATE SOURCE-DERIVED STATE R046, R049, DesignTokens.swift R080, DesignTokens.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 17
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Signal Lab / iPad and companion surfaces iPad portrait / Difficulty iPad portrait / Share popover SOURCE-DERIVED STATE SOURCE-DERIVED STATE R005, MenuScaffold.swift R081, R082, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 18
MATERIAL, MOTION AND ACCESS
Signal Lab / design system
Motion behavior Palette and typography
Use clean mechanical settling and restrained indicator travel.
Decorative ticks must never lead or trail the judged timing edge.
#EEE9DF #262826 #646761 #B93E1D
ivory graphite secondary signal_orange
Accessibility intent
#F8F4EA #C6C4B9 #AD831F
Keep orange and graphite contrast explicit; pair states with text, marks paper hairline stability_gold
and changes in fill. Do not communicate earned jewels by color alone.
ui: Liberation Sans, technical: Liberation Mono, weights: [400, 700], bundled: true
Before implementation
Validate contrast, Dynamic Type, VoiceOver labels, hit regions and reduced-motion
behavior on physical devices. This art book establishes visual intent; it does not Direction-specific editable SVGs, generation prompts, full-resolution artwork and
certify an implemented accessibility result. rendering sources are included in the companion package. Raster illustration and
editable UI layers are identified separately.
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 19
A PERFORMANCE MADE OF LIGHT
Afterimage
PULSE becomes an immersive light
performance. Spectral glass, deep
negative space and controlled luminance
make the musical reactor feel alive.
01 The reactor receives visual depth while menus stay spacious and
typographic.
02 Luminous color carries expression. Text and controls remain on calm,
readable planes.
03 Afterimage is the closest evolutionary path from the original, with a more
deliberate hierarchy and material finish.
VISUAL DIRECTION / COMPLETE FAMILY
All following screens are exploratory and unimplemented. Image-generated concept art is paired
with editable, precisely labeled layout studies.
MATERIAL TARGET / PRECISE EDITABLE SCREENS FOLLOW
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 20

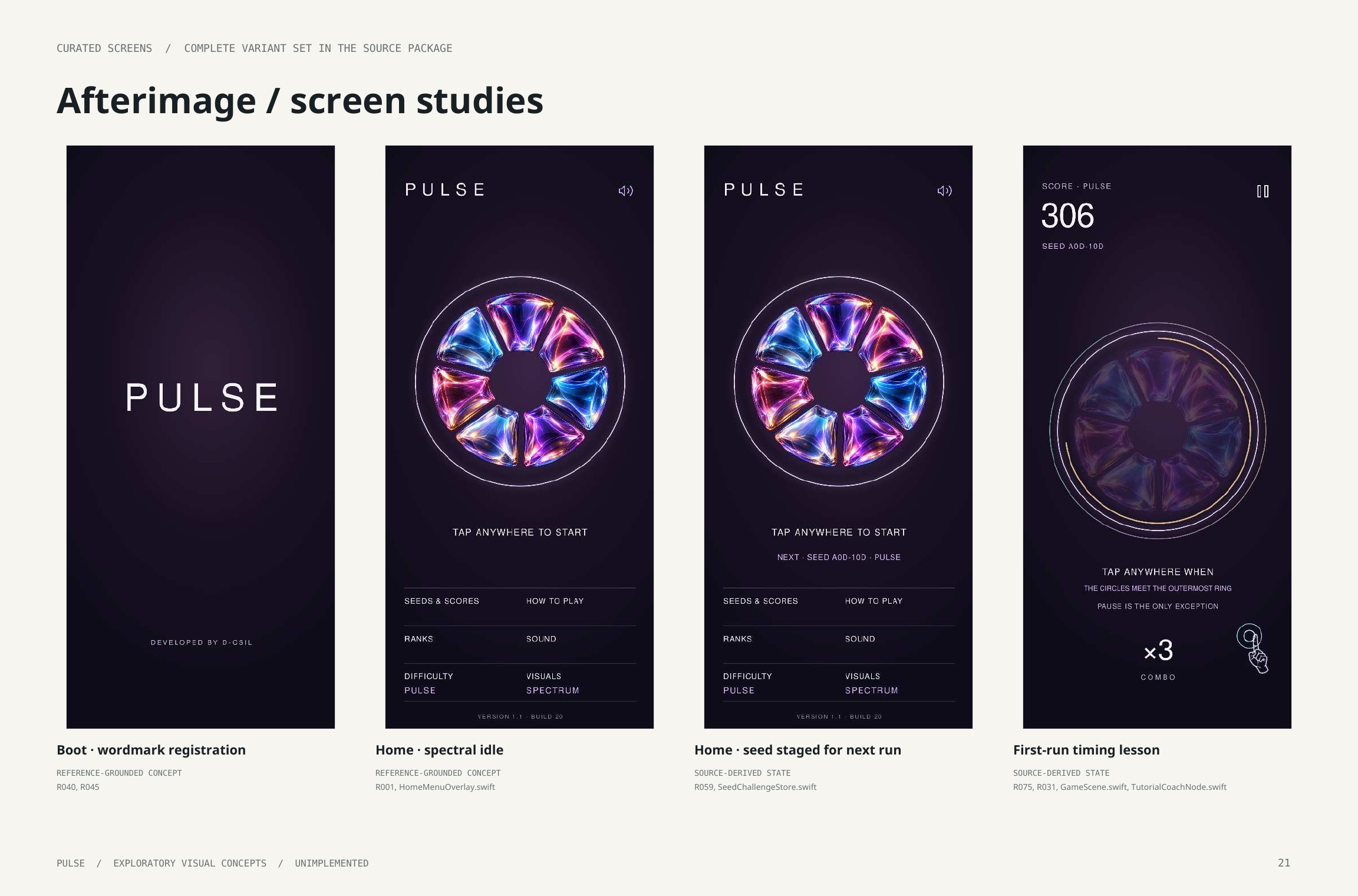

CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies Boot · wordmark registration Home · spectral idle Home · seed staged for next run First-run timing lesson REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE SOURCE-DERIVED STATE R040, R045 R001, HomeMenuOverlay.swift R059, SeedChallengeStore.swift R075, R031, GameScene.swift, TutorialCoachNode.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 21
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies Self-playing demo · low combo Opening count-in · 4 Gameplay · Spectrum high combo Drop · Perfect Euphoria SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE SOURCE-DERIVED STATE R070, GameScene.swift R071, R074 R075, R031, GameScene.swift, TutorialCoachNode.swift R075, R031, GameScene.swift, TutorialCoachNode.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 22
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies Pause · same run resumes Results · normal Difficulty · PULSE selected Visuals · SPECTRUM selected SOURCE-DERIVED STATE SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT GameScene.swift R080, GameScene.swift, NudgeAdvisor.swift R002, DifficultyView.swift R003, DifficultyView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 23
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies High Scores · empty High Scores · All Runs High Scores · Best By Seed High Scores · share action menu REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT R019, R065 R078, HighScoresView.swift HighScoresView.swift R079, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 24
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies Seed entry · invalid disabled / native Seed entry · valid enabled / native keyboard Sound · instrument and full mixer upper Sound · calibration manual keyboard context context viewport SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT AudioSettingsView.swift, AudioSettings.swift HighScoresView.swift HighScoresView.swift R052, R053, AudioSettingsView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 25
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies Sound · calibration off Ranks · local-populated Ranks · signed-out Achievements · catalog viewport 1 SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE AudioSettingsView.swift, AudioSettings.swift LeaderboardView.swift, R054 LeaderboardView.swift, R054 AchievementsView.swift, GameCenterAchievementService.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 26
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies Achievements · catalog viewport 2 How to Play · viewport 1 How to Play · viewport 5 How to Play · viewport 9 SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE AchievementsView.swift, GameCenterAchievementService.swift HowToPlayView.swift HowToPlayView.swift HowToPlayView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 27
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / screen studies How to Play · viewport 12 Companion challenge page SOURCE-DERIVED STATE SOURCE-DERIVED STATE HowToPlayView.swift R076, R077, SeedChallengeStore.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 28
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / iPad and companion surfaces Exported square score card iPad portrait · independently composed Home SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT R069, R051, SeedChallengeShareCard.swift R013, R047, HomeMenuOverlay.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 29
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / iPad and companion surfaces iPad portrait · gameplay registered unit iPad portrait · results and retained navigation REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT R075, R049, DesignTokens.swift R080, GameScene.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 30
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Afterimage / iPad and companion surfaces iPad portrait · menu with capped content column iPad portrait · anchored share action popover REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT R005, DifficultyView.swift R081, R082, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 31

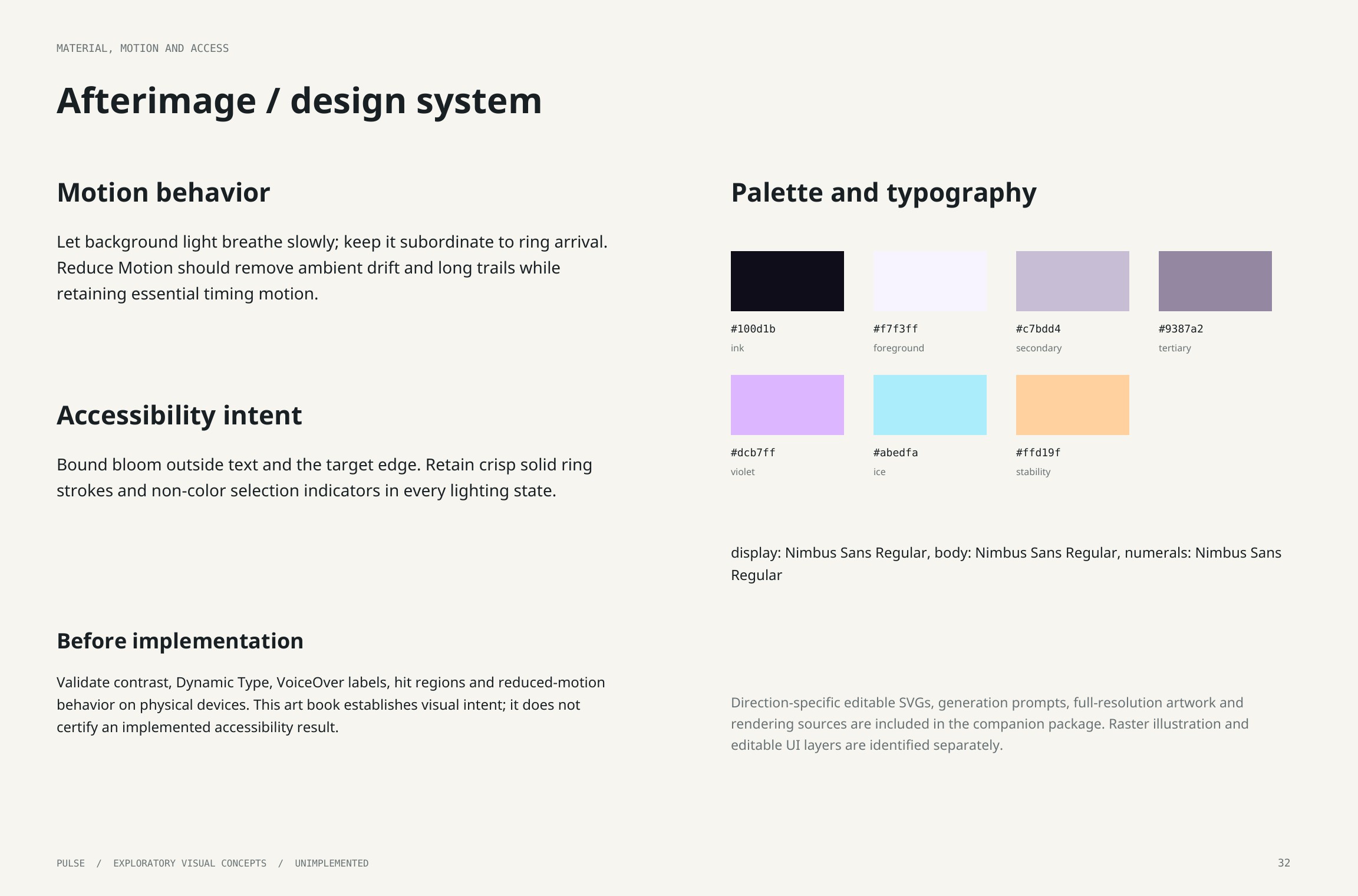

MATERIAL, MOTION AND ACCESS
Afterimage / design system
Motion behavior Palette and typography
Let background light breathe slowly; keep it subordinate to ring arrival.
Reduce Motion should remove ambient drift and long trails while
retaining essential timing motion.
#100d1b #f7f3ff #c7bdd4 #9387a2
ink foreground secondary tertiary
Accessibility intent
#dcb7ff #abedfa #ffd19f
Bound bloom outside text and the target edge. Retain crisp solid ring violet ice stability
strokes and non-color selection indicators in every lighting state.
display: Nimbus Sans Regular, body: Nimbus Sans Regular, numerals: Nimbus Sans
Regular
Before implementation
Validate contrast, Dynamic Type, VoiceOver labels, hit regions and reduced-motion
behavior on physical devices. This art book establishes visual intent; it does not Direction-specific editable SVGs, generation prompts, full-resolution artwork and
certify an implemented accessibility result. rendering sources are included in the companion package. Raster illustration and
editable UI layers are identified separately.
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 32

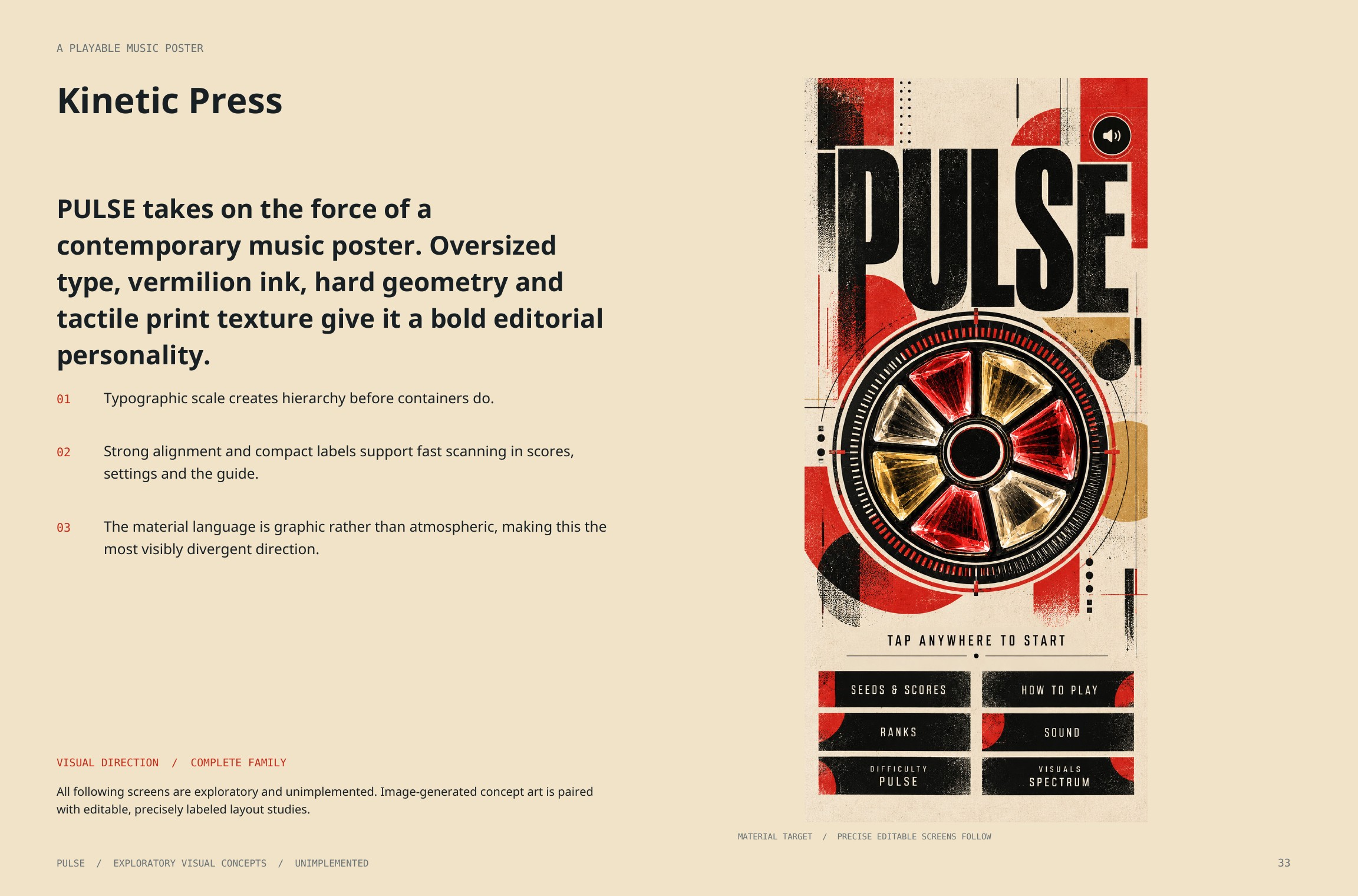

A PLAYABLE MUSIC POSTER
Kinetic Press
PULSE takes on the force of a
contemporary music poster. Oversized
type, vermilion ink, hard geometry and
tactile print texture give it a bold editorial
personality.
01 Typographic scale creates hierarchy before containers do.
02 Strong alignment and compact labels support fast scanning in scores,
settings and the guide.
03 The material language is graphic rather than atmospheric, making this the
most visibly divergent direction.
VISUAL DIRECTION / COMPLETE FAMILY
All following screens are exploratory and unimplemented. Image-generated concept art is paired
with editable, precisely labeled layout studies.
MATERIAL TARGET / PRECISE EDITABLE SCREENS FOLLOW
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 33
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies Boot / optical wordmark Home / idle Home / pending seed Gameplay / tutorial / standard REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE R040, BootScene.swift R001, HomeMenuOverlay.swift R001, HomeMenuOverlay.swift R034, R035, TutorialCoachNode.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 34
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies Gameplay / demo / standard Gameplay / count / standard Gameplay / play / standard Gameplay / euphoria / standard SOURCE-DERIVED STATE SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE R070, GameScene.swift R071, R074 R075, R026, GameScene.swift R075, R026, GameScene.swift, R031, R032 PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 35
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies Pause / same run resumes Results / ordinary Difficulty / PULSE Visuals / Spectrum SOURCE-DERIVED STATE SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT GameScene.swift R044, R080, GameScene.swift R002, DifficultyView.swift R003, DifficultyView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 36
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies High Scores / empty High Scores / All Runs High Scores / Best By Seed High Scores / share actions REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT R019, HighScoresView.swift R078, R079, HighScoresView.swift R078, R079, HighScoresView.swift R078, R079, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 37
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies Seed entry / incomplete disabled Seed entry / valid Sound / mixer / TRANCE Sound / calibration / SPEAKER / manual SOURCE-DERIVED STATE SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE HighScoresView.swift HighScoresView.swift R052, AudioSettingsView.swift AudioSettingsView.swift, AudioSettings.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 38
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies Sound / calibration / SPEAKER / off How to Play / scroll viewport 1 How to Play / scroll viewport 4 How to Play / scroll viewport 7 SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE AudioSettingsView.swift, AudioSettings.swift HowToPlayView.swift HowToPlayView.swift HowToPlayView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 39
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies How to Play / scroll viewport 10 Ranks / local Ranks / signed-out Achievements / scroll 1 SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE HowToPlayView.swift LeaderboardView.swift, R054 LeaderboardView.swift, R054 AchievementsView.swift, GameCenterAchievementService.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 40
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / screen studies Achievements / scroll 2 Companion web challenge SOURCE-DERIVED STATE SOURCE-DERIVED STATE AchievementsView.swift, GameCenterAchievementService.swift R076, R077, SeedChallengeStore.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 41
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / iPad and companion surfaces Exported score card iPad portrait / independent home SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT R051, R069, SeedChallengeShareCard.swift R013, DesignTokens.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 42
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / iPad and companion surfaces iPad portrait / registered gameplay iPad portrait / result summary REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE R046, R049, DesignTokens.swift R080, R050, DesignTokens.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 43
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Kinetic Press / iPad and companion surfaces iPad portrait / independent menu iPad portrait / anchored share menu REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT R005, MenuScaffold.swift R081, R082 PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 44
MATERIAL, MOTION AND ACCESS
Kinetic Press / design system
Motion behavior Palette and typography
Use short graphic cuts and rhythmic scale changes on non-gameplay
surfaces. Keep the judged target fixed and avoid jitter in the active play
field.
#EEE6D4 #171713 #C42D18 #C98D32
paper ink vermilion ochre
Accessibility intent
#635E52 #BCB3A0
Keep grain out of small text and timing boundaries. Black-on-paper secondaryText divider
contrast supports readability; preserve generous control hit regions
despite compact typography.
display: Nimbus Sans Narrow Bold, body: Nimbus Sans, numerals: Nimbus Sans
Narrow Bold
Before implementation
Validate contrast, Dynamic Type, VoiceOver labels, hit regions and reduced-motion
behavior on physical devices. This art book establishes visual intent; it does not Direction-specific editable SVGs, generation prompts, full-resolution artwork and
certify an implemented accessibility result. rendering sources are included in the companion package. Raster illustration and
editable UI layers are identified separately.
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 45

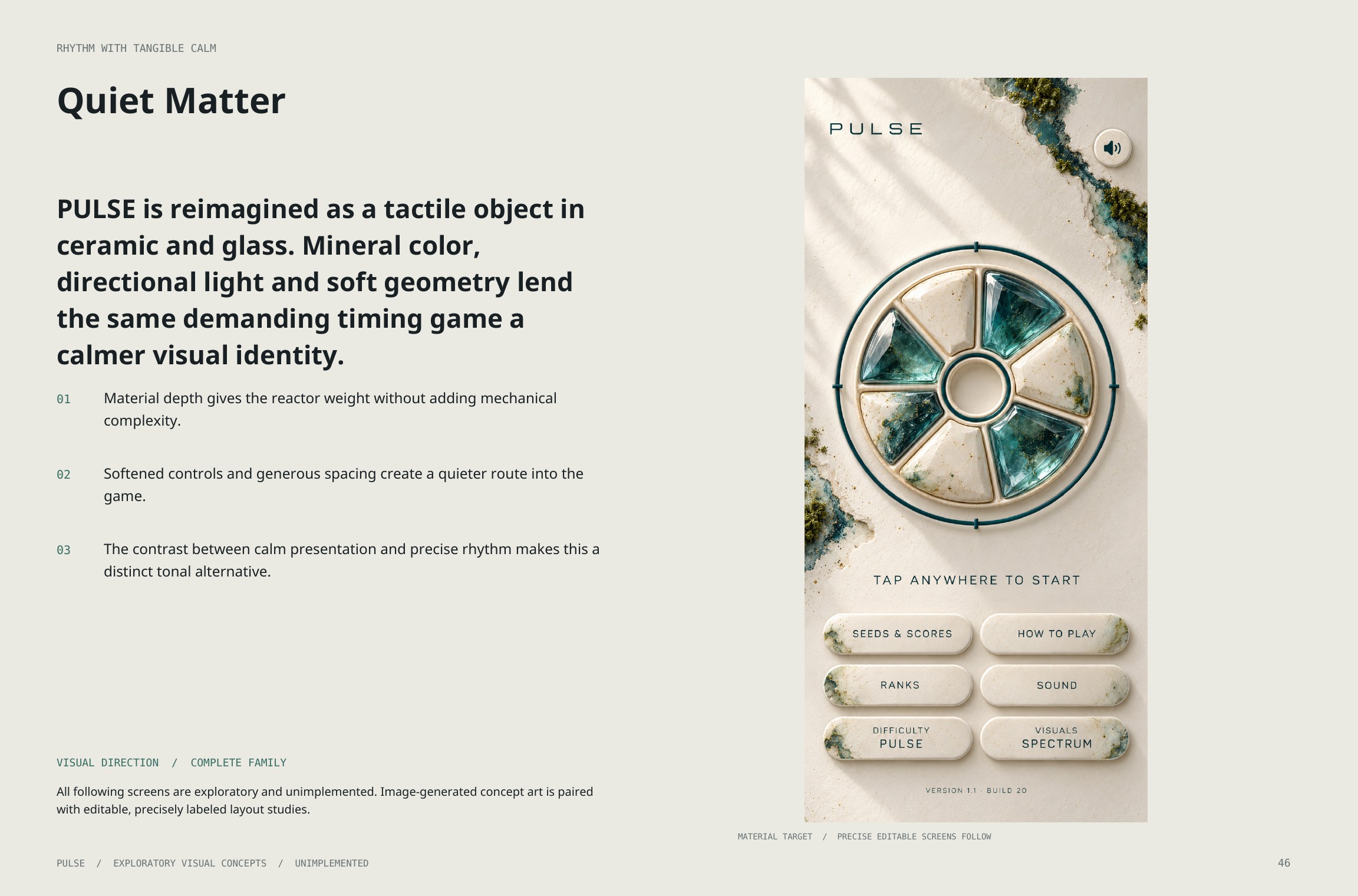

RHYTHM WITH TANGIBLE CALM
Quiet Matter
PULSE is reimagined as a tactile object in
ceramic and glass. Mineral color,
directional light and soft geometry lend
the same demanding timing game a
calmer visual identity.
01 Material depth gives the reactor weight without adding mechanical
complexity.
02 Softened controls and generous spacing create a quieter route into the
game.
03 The contrast between calm presentation and precise rhythm makes this a
distinct tonal alternative.
VISUAL DIRECTION / COMPLETE FAMILY
All following screens are exploratory and unimplemented. Image-generated concept art is paired
with editable, precisely labeled layout studies.
MATERIAL TARGET / PRECISE EDITABLE SCREENS FOLLOW
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 46

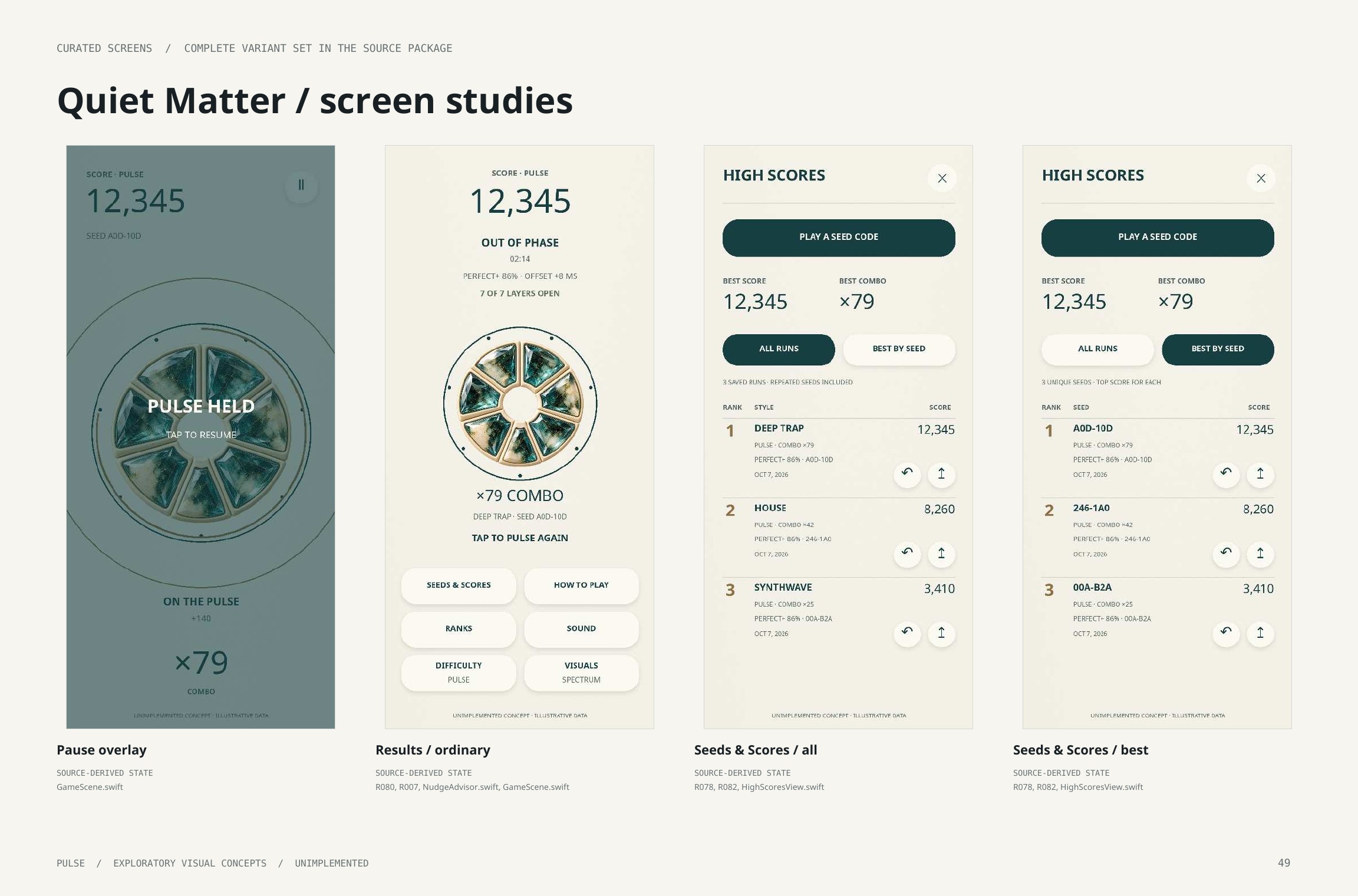

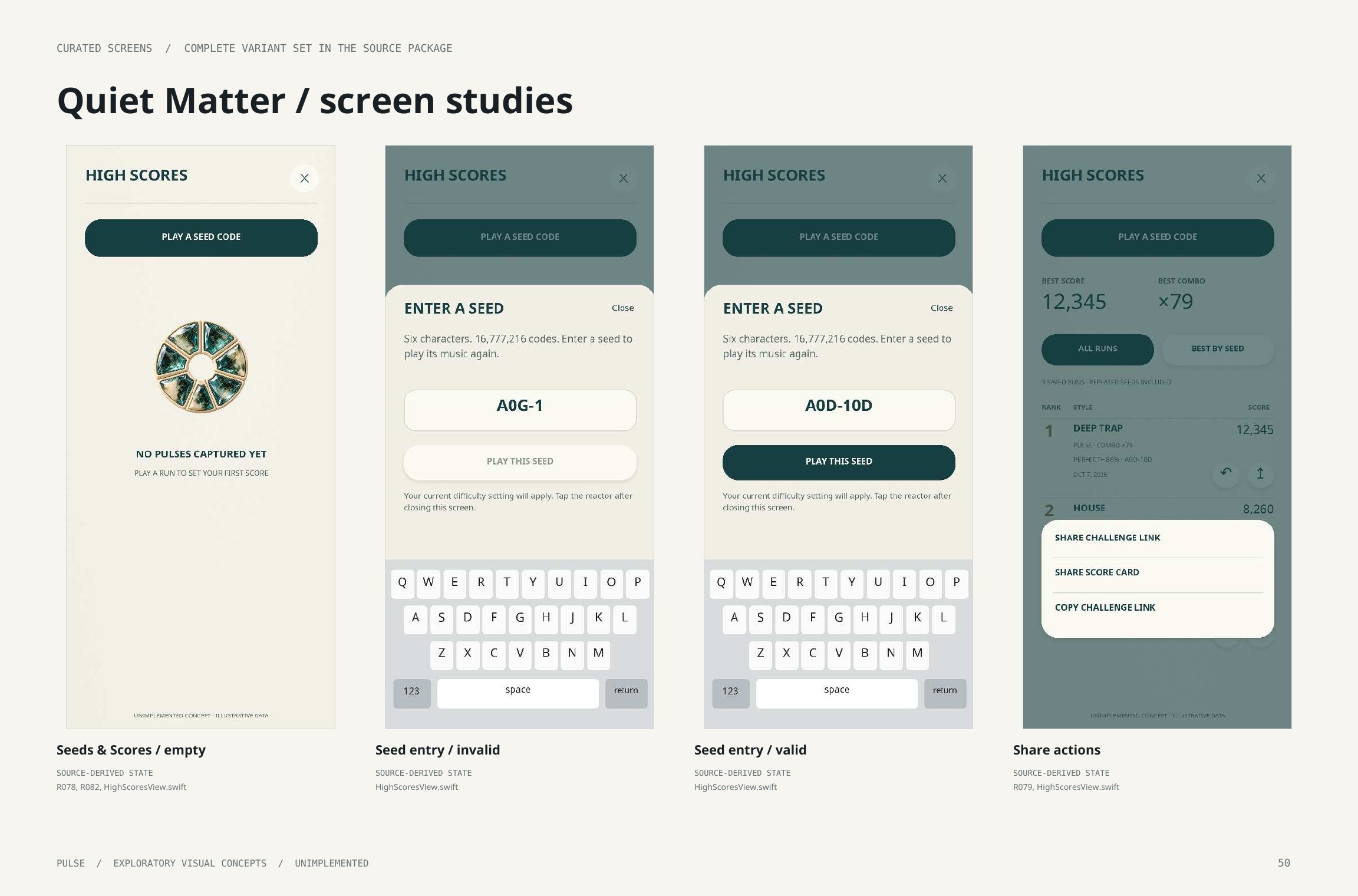

CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Boot / launch Home / idle Pending next seed First-run timing-1 REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE SOURCE-DERIVED STATE R040, BootScene.swift R001, HomeMenuOverlay.swift R059, SeedChallengeStore.swift R038, R037, TutorialCoachNode.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 47
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Self-playing demo / combo 8 Opening count-in 4 Gameplay / euphoria-perfect Gameplay / spectrum SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE SOURCE-DERIVED STATE R070, GameScene.swift R071, R074, GameScene.swift R075, R026, RunController.swift, GameScene.swift R075, R026, RunController.swift, GameScene.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 48
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Pause overlay Results / ordinary Seeds & Scores / all Seeds & Scores / best SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE GameScene.swift R080, R007, NudgeAdvisor.swift, GameScene.swift R078, R082, HighScoresView.swift R078, R082, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 49
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Seeds & Scores / empty Seed entry / invalid Seed entry / valid Share actions SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE R078, R082, HighScoresView.swift HighScoresView.swift HighScoresView.swift R079, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 50
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Difficulty / PULSE Visuals / SPECTRUM Sound / upper viewport Calibration / SPEAKER / manual REFERENCE-GROUNDED CONCEPT SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE R002, DifficultyView.swift R003, DifficultyView.swift AudioSettingsView.swift, R052, R053 AudioSettingsView.swift, AudioSettings.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 51
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Calibration / SPEAKER / off How to Play / scroll viewport 1 How to Play / scroll viewport 4 How to Play / scroll viewport 8 SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE AudioSettingsView.swift, AudioSettings.swift HowToPlayView.swift HowToPlayView.swift HowToPlayView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 52
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies How to Play / scroll viewport 11 Ranks / local-populated Ranks / signed-out Achievements / signed out SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE SOURCE-DERIVED STATE HowToPlayView.swift LeaderboardView.swift, R054 LeaderboardView.swift, R054 AchievementsView.swift, GameCenterAchievementService.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 53
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / screen studies Companion web challenge SOURCE-DERIVED STATE R076, R077, SeedChallengeStore.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 54
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / iPad and companion surfaces Exported square card iPad portrait / home SOURCE-DERIVED STATE REFERENCE-GROUNDED CONCEPT R051, R069, SeedChallengeShareCard.swift R013, DesignTokens.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 55
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / iPad and companion surfaces iPad portrait / gameplay iPad portrait / results REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT R049, DesignTokens.swift R080, DesignTokens.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 56
CURATED SCREENS / COMPLETE VARIANT SET IN THE SOURCE PACKAGE Quiet Matter / iPad and companion surfaces iPad portrait / difficulty iPad portrait / anchored share menu REFERENCE-GROUNDED CONCEPT REFERENCE-GROUNDED CONCEPT R005, MenuScaffold.swift R081, R073, HighScoresView.swift PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 57
MATERIAL, MOTION AND ACCESS
Quiet Matter / design system
Motion behavior Palette and typography
Use subtle material response and short settling transitions. Never
animate shadows into a false target or soften the essential edge at the
moment of judgment.
#F1EFE6 #173F42 #5A715C #526562
alabaster petrol moss secondary
Accessibility intent
#907141 #FAF9F2 #CCD3C7 #975744
Reserve dark mineral tones for small text and controls. Keep tactile gold_stability surface divider warning
depth supplementary to clear labels, focus, selected states and crisp
timing geometry.
family: Noto Sans, weights: [400, 700], body_pt: 15, page_title_pt: 23, score_pt: 48,
secondary_pt: 12, minimum_control_target_pt: 44
Before implementation
Validate contrast, Dynamic Type, VoiceOver labels, hit regions and reduced-motion
behavior on physical devices. This art book establishes visual intent; it does not Direction-specific editable SVGs, generation prompts, full-resolution artwork and
certify an implemented accessibility result. rendering sources are included in the companion package. Raster illustration and
editable UI layers are identified separately.
PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 58
COMPLETENESS MATRIX Every surface accounted for The matrix maps each inventory row to the corresponding concept image or explicit retained-platform documentation. Detailed filenames, variants and evidence are in the accompanying CSV and JSON manifest. SURFACE OR STATE SIGNAL LAB AFTERIMAGE KINETIC PRESS QUIET MATTER Boot and launch Covered Covered Covered Covered Home and idle Covered Covered Covered Covered First-run prompt Covered Covered Covered Covered Timing tutorial Covered Covered Covered Covered Self-playing demo Covered Covered Covered Covered Opening count-in Covered Covered Covered Covered Active play and patterns Covered Covered Covered Covered Drop and reward Covered Covered Covered Covered Pause and resume Covered Covered Covered Covered Results and variants Covered Covered Covered Covered Empty score history Covered Covered Covered Covered All Runs Covered Covered Covered Covered Best By Seed Covered Covered Covered Covered Seed entry and validation Covered Covered Covered Covered Pending challenge seed Covered Covered Covered Covered Share action menu Covered Covered Covered Covered Native share handoff Documented Documented Documented Documented Square score card Covered Covered Covered Covered Five difficulty choices Covered Covered Covered Covered Original and Spectrum Covered Covered Covered Covered Sound and all five sliders Covered Covered Covered Covered Calibration and assist states Covered Covered Covered Covered Complete How to Play guide Covered Covered Covered Covered Ranks and service states Covered Covered Covered Covered Achievement catalog Covered Covered Covered Covered Native Game Center handoff Documented Documented Documented Documented Companion challenge page Covered Covered Covered Covered Developer-only Music Lab Documented Documented Documented Documented “Documented” means the system-owned or developer-only surface is explicitly retained and described, rather than replaced by a made-up consumer screen. PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 59
EVIDENCE AND LIMITS Grounding and outstanding checks Captured reference anchors R001 home; R003 Visuals; R075 current automated gameplay; R070 demo; R071/R074 count-in; R078/R082 actual local score lists; R079/R081 share menus; R072/R073 native share sheets; R080 iPad result. Older source fixtures are used only as documented layout evidence. Source-derived state gaps No exact current still was supplied for pause, seed-entry validation and keyboard, Best By Seed, calibration variants, current Game Center service states, Achievements or native Game Center dialogs. Lower guide sections and full drop/pattern sequences are partly source-derived. Device grounding Original iPhone captures include 1206×2622. Native current iPad captures are 2064×2752. Tablet compositions in this book are separate portrait studies, not widened phone screenshots. Physical-device interaction and rotation have not been tested by the art-book production. Illustrative performance and rankings Concept score, seed, combo and achievement values are illustrative layout data. Automated gameplay and historical fixtures do not establish a human performance. Placeholder online states do not assert any real player, ranking or authentication result. Project ownership and execution boundary PULSE was conceived, designed and developed by Paul Derrington, Jr. for D-CSIL. © 2026 D-CSIL. The reference package was assembled read-only on October 7, 2026. The redesign work created separate art files only. No feature removal, application implementation, build, App Store change or release is part of this deliverable. PULSE / EXPLORATORY VISUAL CONCEPTS / UNIMPLEMENTED 60
